Yas Nqa Hnab Ua Tshuab
Muab los ntawm Shengxiang
Nruab nrog 0.75KW Ltalis MainMotor
Nruab nrog 3KW Nyiv Servo Tsav
Tsis siv neeg cua ncej loading system
Tsis siv neeg lub hnab qhov ncauj xuas nrig ntaus system
German yees duab hluav taws xob nrhiav qhov muag
Taiwan Delta / Xinjie computer maub los.
Hauj lwm lawm
Kev tsis
Product Description

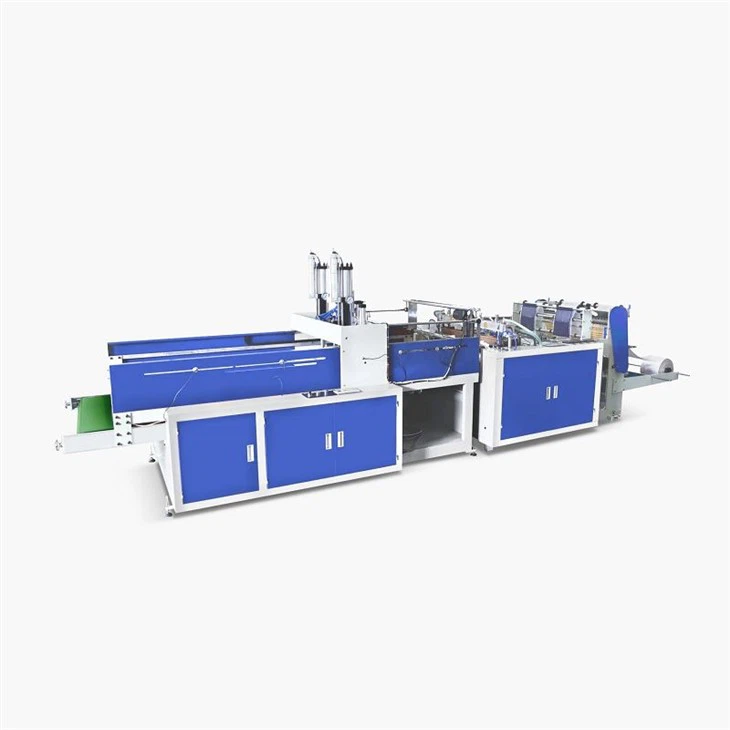

SX-AT700/900 Yas nqa hnab ua tshuab
Application/Features:
Lub hnab nqa lub hnab ua tshuab no yog siv rau kev tsim cov hnab tsho tsis muaj xim uas ua los ntawm LDPE, LDPE yob zaj duab xis, nws siv PLC tswj, ob chav servo (kauj ruam) lub cev muaj zog ruaj khov ntev thiab kov lub vijtsam tiag tiag.
Los ntawm kev pub mis, sealing, txiav, xuas nrig ntaus lub qhov ncauj mus rau kev thauj mus los, nws tuaj yeem ua tiav hauv ib txheej txheem, tshuab nrog qib siab ntawm automation thiab kev lag luam zoo.
Machine Basic Parameters
|
Qauv |
SX-UA 700 |
SX-UA 900 |
|
Max Lub Hnab Ua Dav |
320mm * 2 |
420mm * 2 |
|
Max Lub Hnab Ua Ntev |
650 hli |
800 hli |
|
Hnab Ua Thickness |
0 008-0.05 hli |
0 008-0.05 hli |
|
Hnab Ua Ceev |
50-300 pcs/min *2 |
50-250 pcs/min *2 |
|
Kev xav tau cua txias |
5 kg / cm32 |
5 kg / cm32 |
|
Ntev Precision |
± 1 hli |
± 1 hli |
|
Tag Nrho Lub Zog |
12 kwv |
16 kwv |
|
Qhov hnyav |
1400 kg |
1600 kg ib |
|
Qhov Loj (L x W x H) |
5500 * 1400 * 1700 hli |
5500 * 1600 * 1700 hli |
FAQ
Yuav tso qhov kev txiav txim li cas?
Product Consultation-> Business negotiation-> Provide plans-> follow-up matters-> arrange deposit-> production-> before delivery (if you need to check the goods, it can be notified us)-> Inspection-> payment settlement- > Packing and Delivery-> Preparations before the factory-> On-site Installation-> Service Feedback->Ntau kev koom tes thiab xa mus. Cov ntsiab lus nthuav dav tuaj yeem pom - kev lag luam txheej txheem.
Koj puas yog lub Hoobkas?
Peb yog lub Hoobkas, nyob hauv Ruian, Zhejiang, Suav.
Lub tshuab no siv ntau qhov chaw?
Cov khoom siv sib txawv muaj qhov xav tau ntawm qhov chaw sib txawv. Yog xav paub ntxiv, thov nrog peb tus kws pab tswv yim muag khoom.
Kuv yuav tsum muaj pes tsawg tus neeg ua haujlwm los khiav lub tshuab no?
SX-AT700/900 yas nqa lub hnab ua tshuab xav tau ib lub zog rau cov neeg siv tshuab.
Kuv yuav tsum npaj dab tsi ua ntej cov cuab yeej tuaj txog ntawm lub hoobkas?
Peb muaj ib daim ntawv teev npe thiab daim ntawv teev cov khoom seem kom tau raws li cov kev xav tau sib txawv ntawm cov neeg siv khoom lag luam.
Khoom Paub meej
Vim Li Cas Xaiv Peb
Txog Peb
Daim ntawv pov thawj
Ntim Thawv
Cim npe nrov: yas nqa hnab ua tshuab, Tuam Tshoj yas nqa hnab ua tshuab manufacturers, lwm tus neeg, Hoobkas
